Wireless Calling System for Hospital Nurse Call System

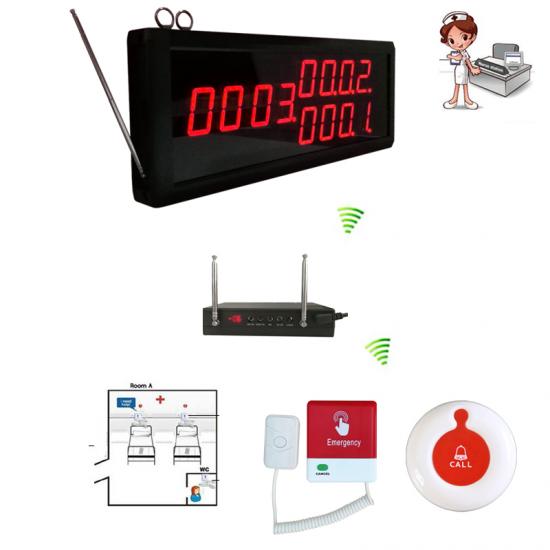

How it work of wireless calling system

Hospital nurse call system is widely used in hospital;clinic;elder home and so on. It consist of button for patient use and signal receiver for nurse or doctor use. When the patient need any help, they just press the button, the bed number will be showed on the RECEIVER of display screen with “dingdong” sound. So the Nurse and doctor could offer help very timely.

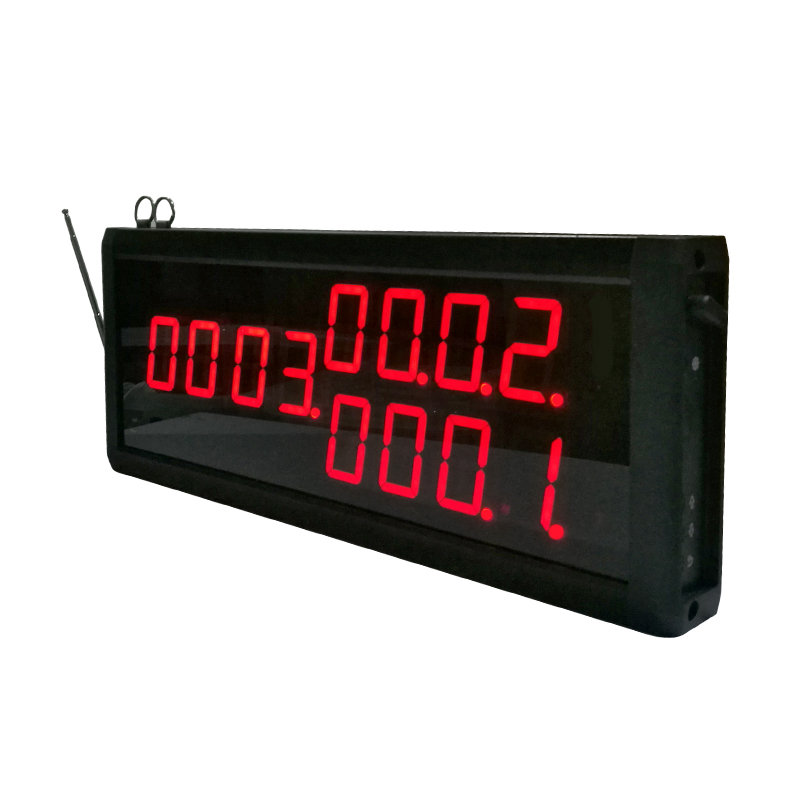

Specification of wireless call system display

1. With high strength aluminum alloy shell
2. Use digital code technology and the function is steady
3. Wall mounted
4. It show 3-digit number and work with 999pcs call buttons in max

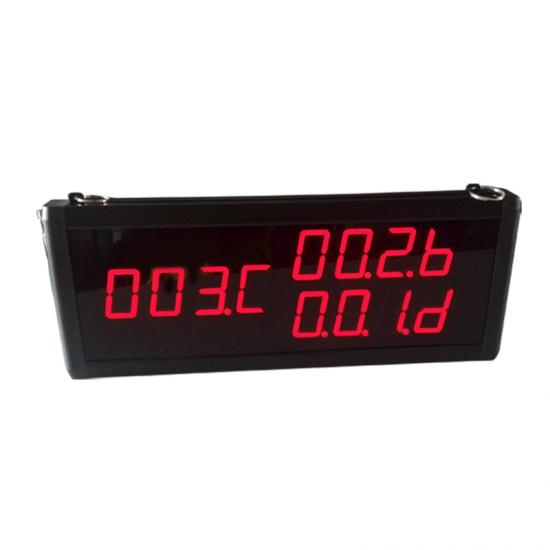

5. Show different service type: C for call; b for bill; d for drink
6. It can show 3 groups of number at the same time
7. It can save 63 calling info in turn
8. Last alphabet can be digit (4-digits)
9. Dimension: 410*160*40mm
10 Output: DC12V
11. With English Prompt voice or common type with "dingdong" only

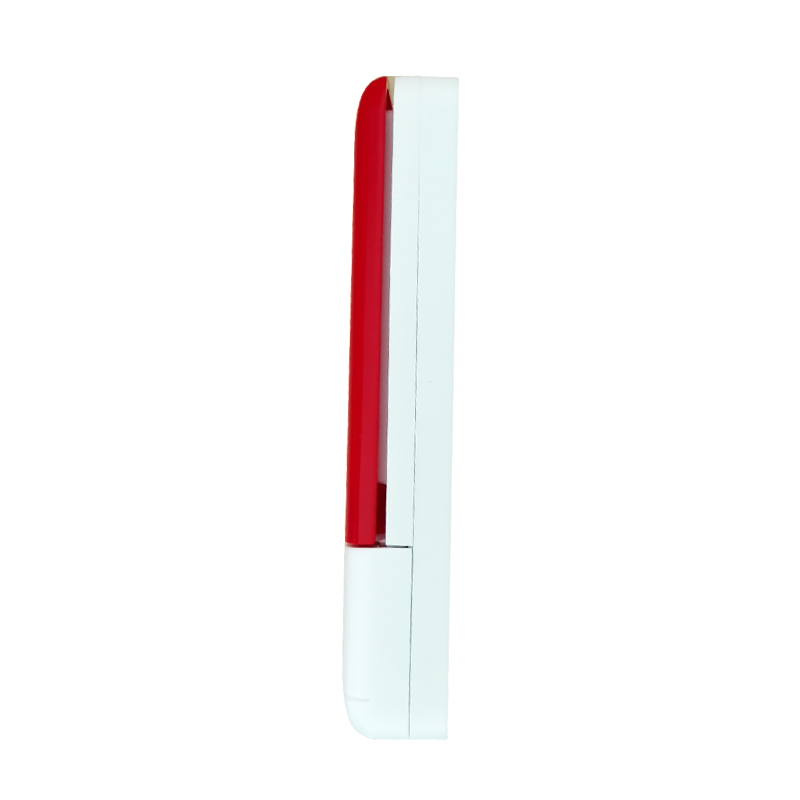

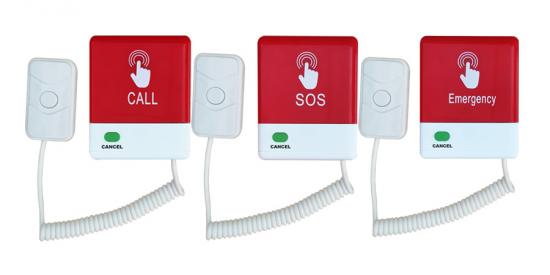

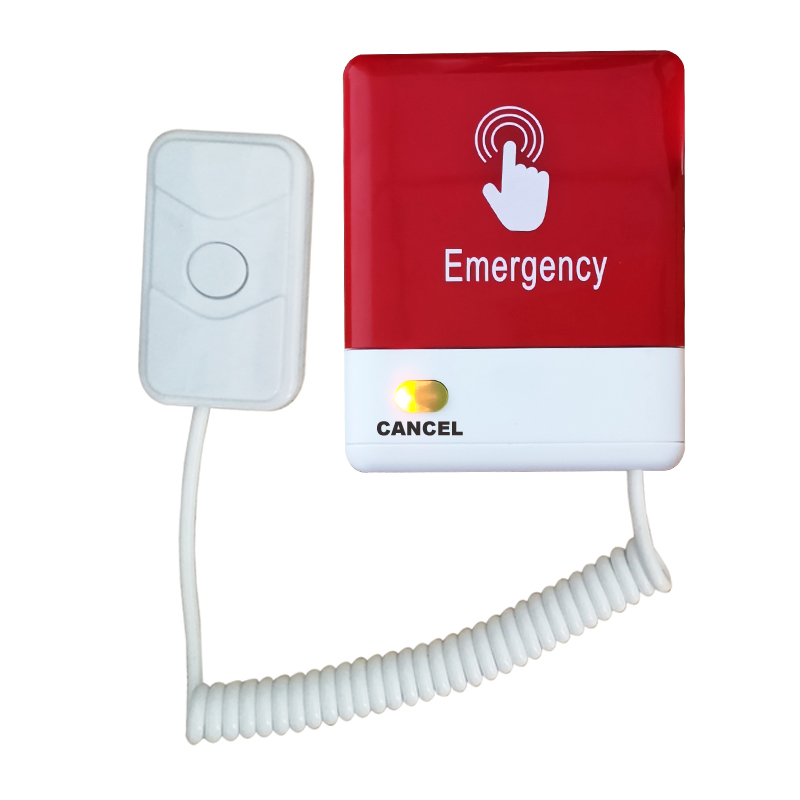

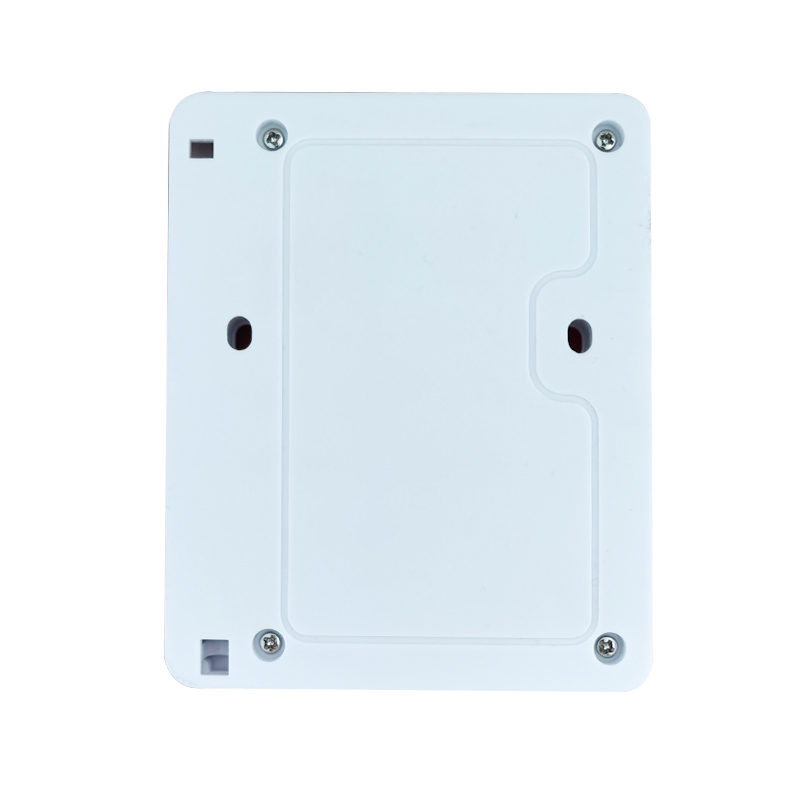

Specification of patient pull button

Waterproof
3-key: Nurse icon, SOS, Tick
Nurse Icon means call the nurse, SOS means emergency, Tick means cancel the calling
(Have a additional key on pull cord to call)
Cord length: 30cm (default)、50cm、120cm
Signal Distance: 200M  in open area
Material: PC for plastic shell, waterproof siliga gel
Dimension: 8.5*10.5*1.8cm
Color:   white-red
wall-mounted installation
With a antenna to enhance the signal
With a 12V 23A battery

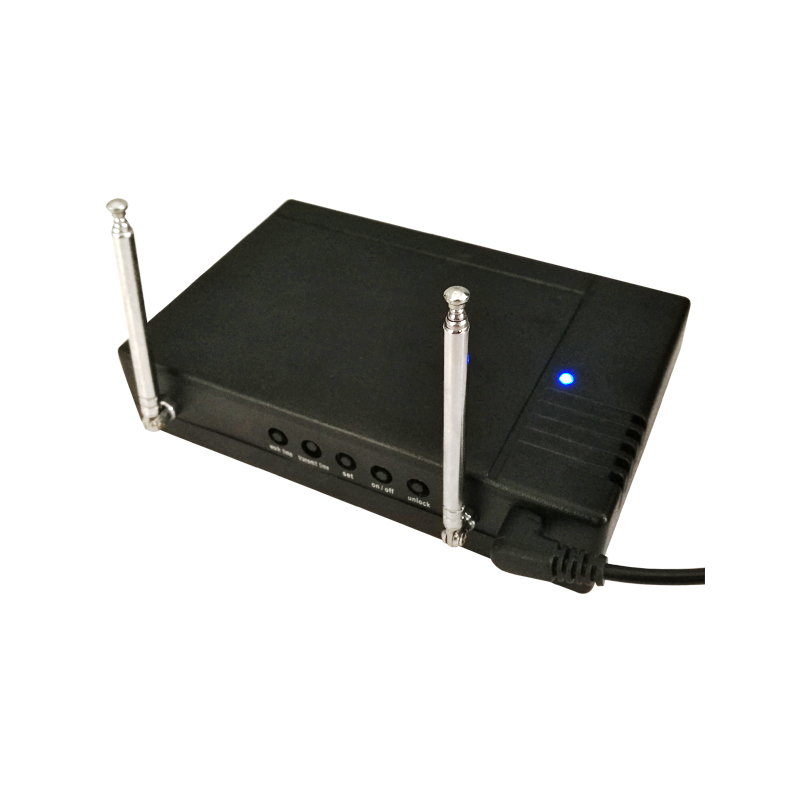

Specification of repeater to expand wireless nurse call system range :

Expand transmit range: about 500M in a open area
Can relay one more time by time setting
Output: DC12V
Dimension:136*100*31mm
Color: Black

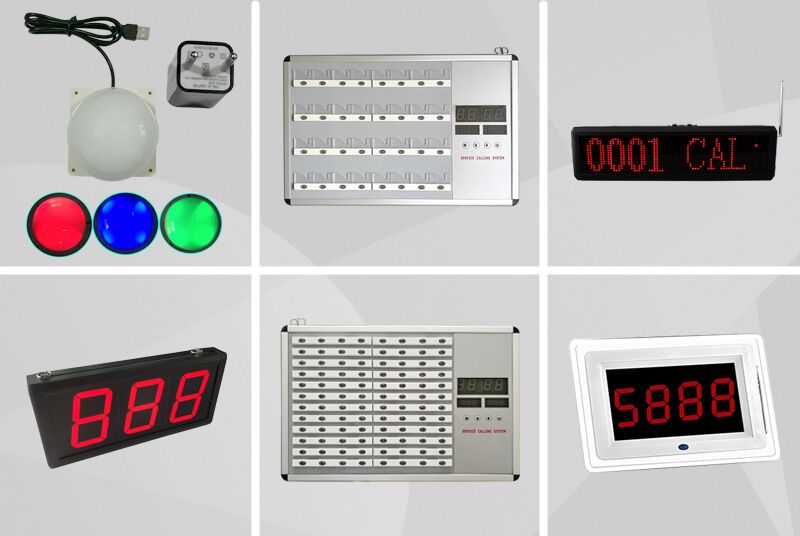

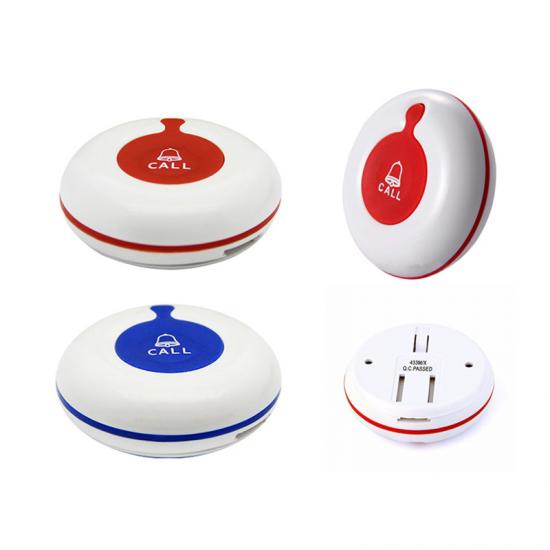

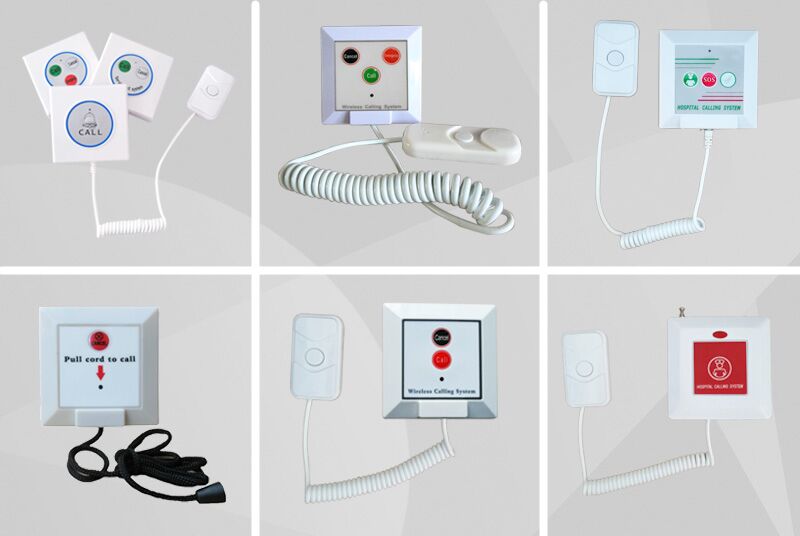

More patient call button and nurse station pannel picture
